July 7, 2005: Painting fished and a fresh view of the stay cables

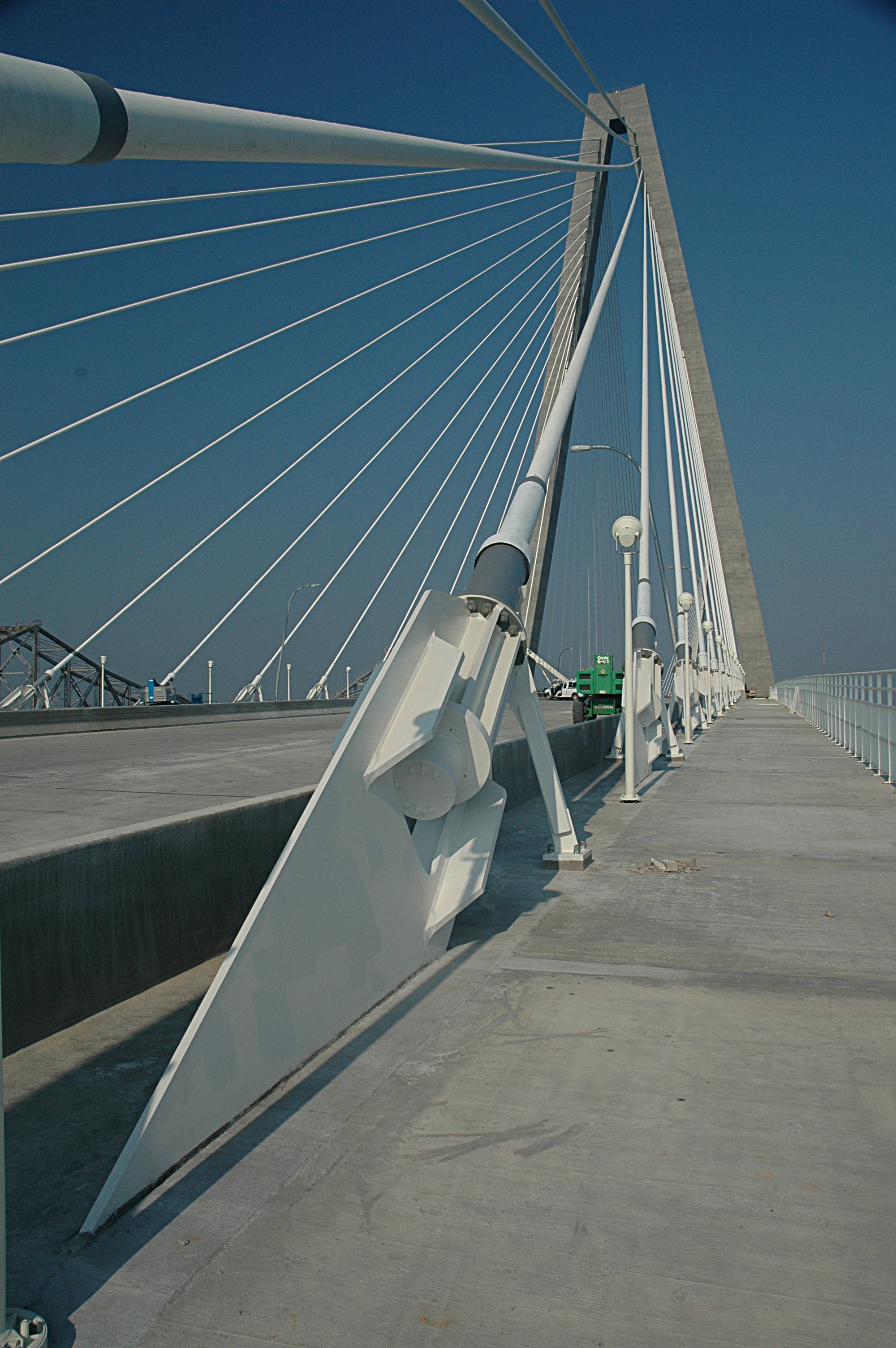

Shark fin anchors and supports

A closer view of the cable anchorage

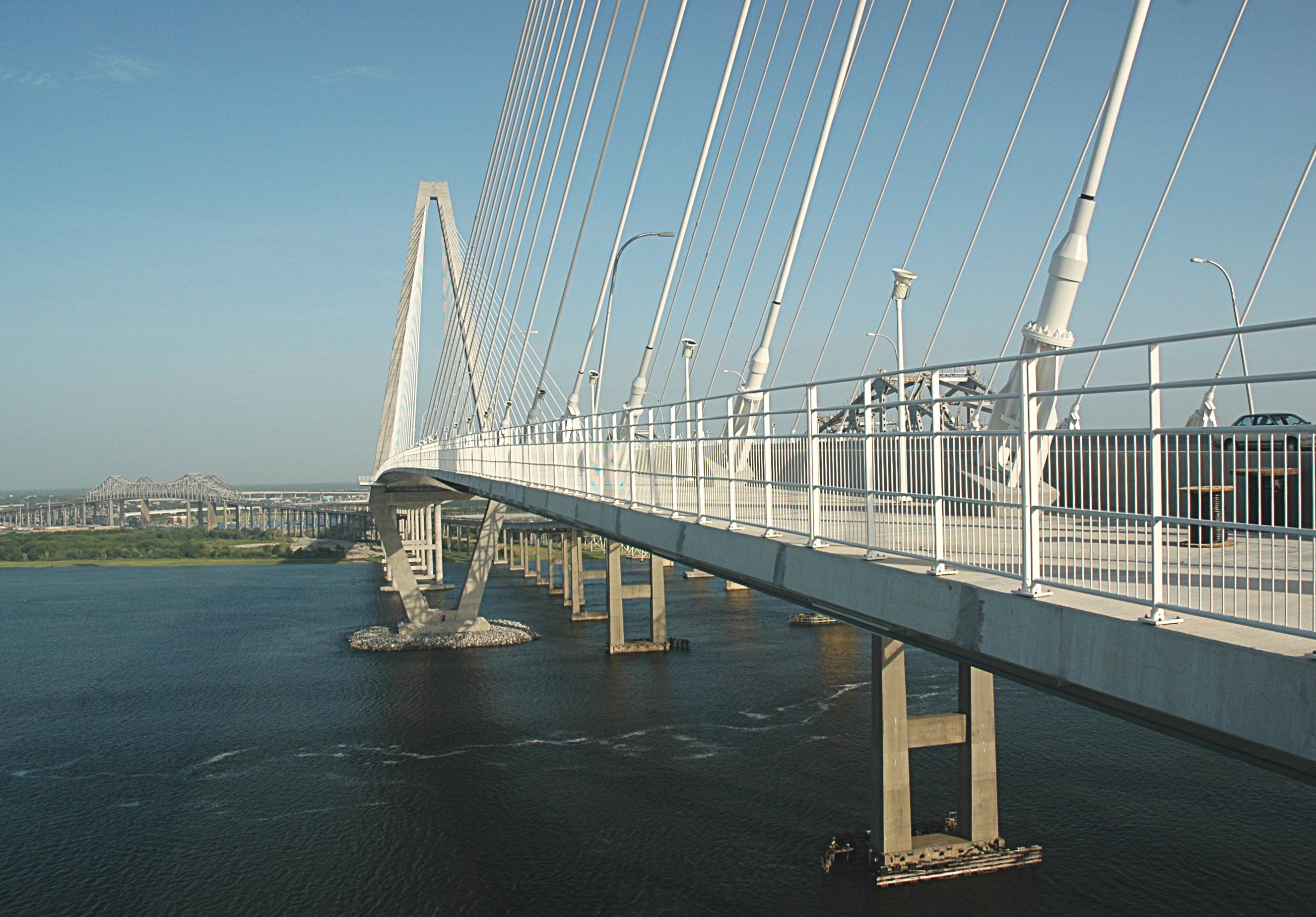

Looking from the walkway

Looking down (left) and up (right)

An array of anchors and external dampers

Another view of the external damper and horizontal struts

The damper and damper frame

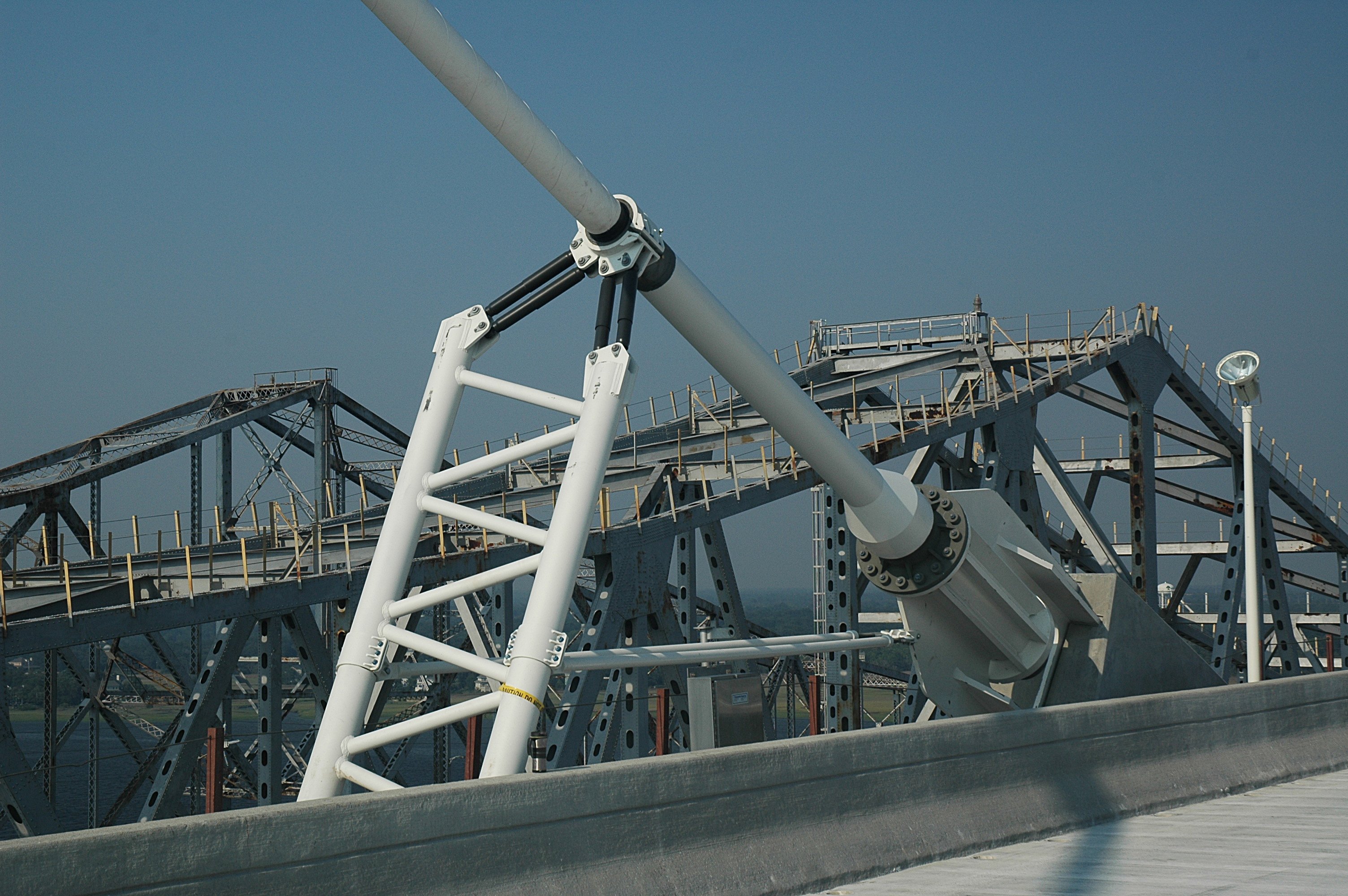

A view of the damper

An array of stay pipes

June 15, 2005: Last details of the stay cable systems

The bridge project has brought me more new friends than I can count. Olivier Forget, the manager of the Freyssinet team, opened his head for me and fed me ideas and insights about the complexities of erecting the stay pipes and building the cables. Soon Olivier will return to France and he would like to follow the finish work and share images of the finished external supports and shark fins with his team in France and his team members, wherever they are around the world. So this page if for Olivier and his team.

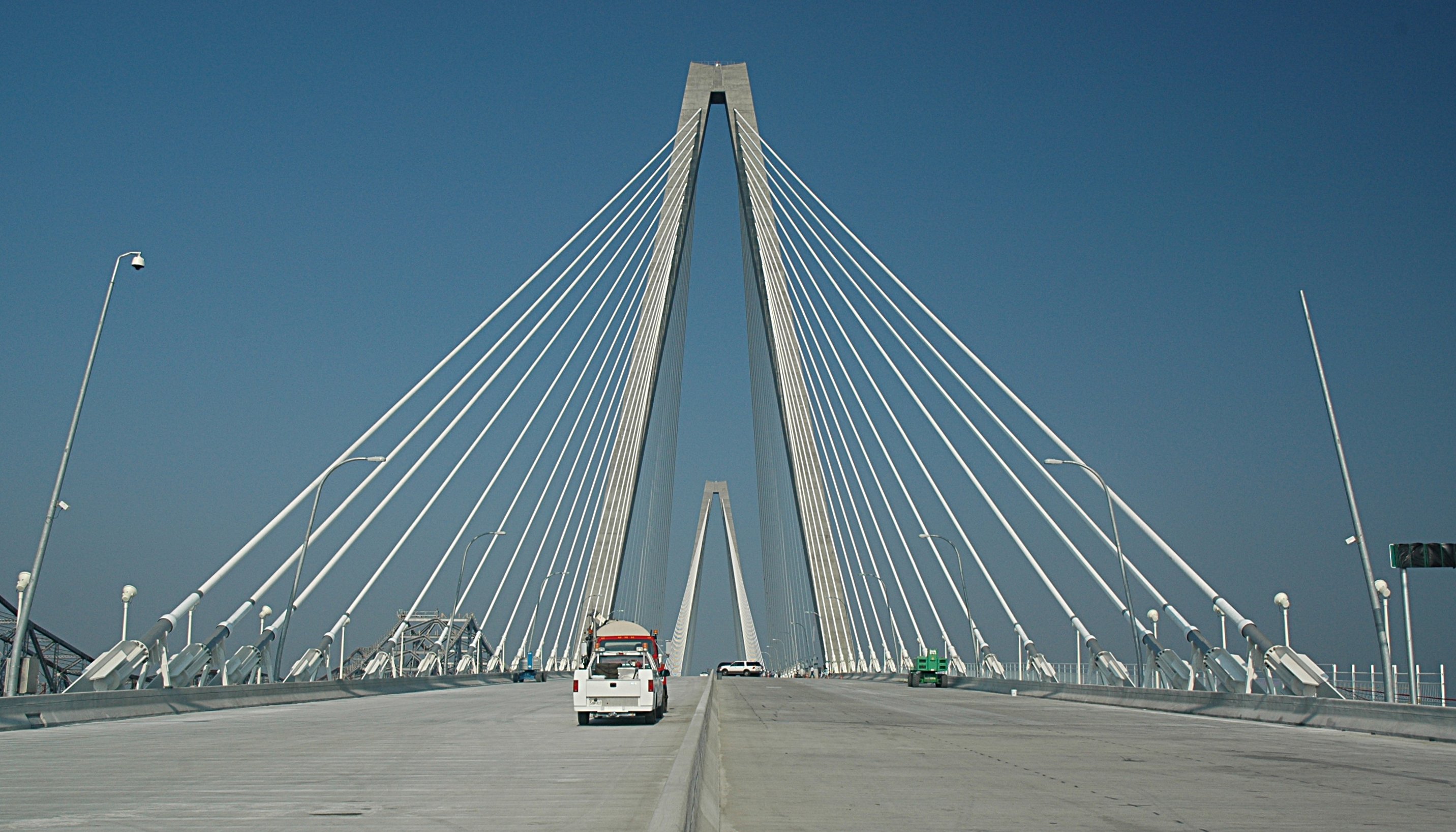

Here are the cables that Freyssinet designed, engineered, installed, tested and then, with great pride, smiled.

A bit closer

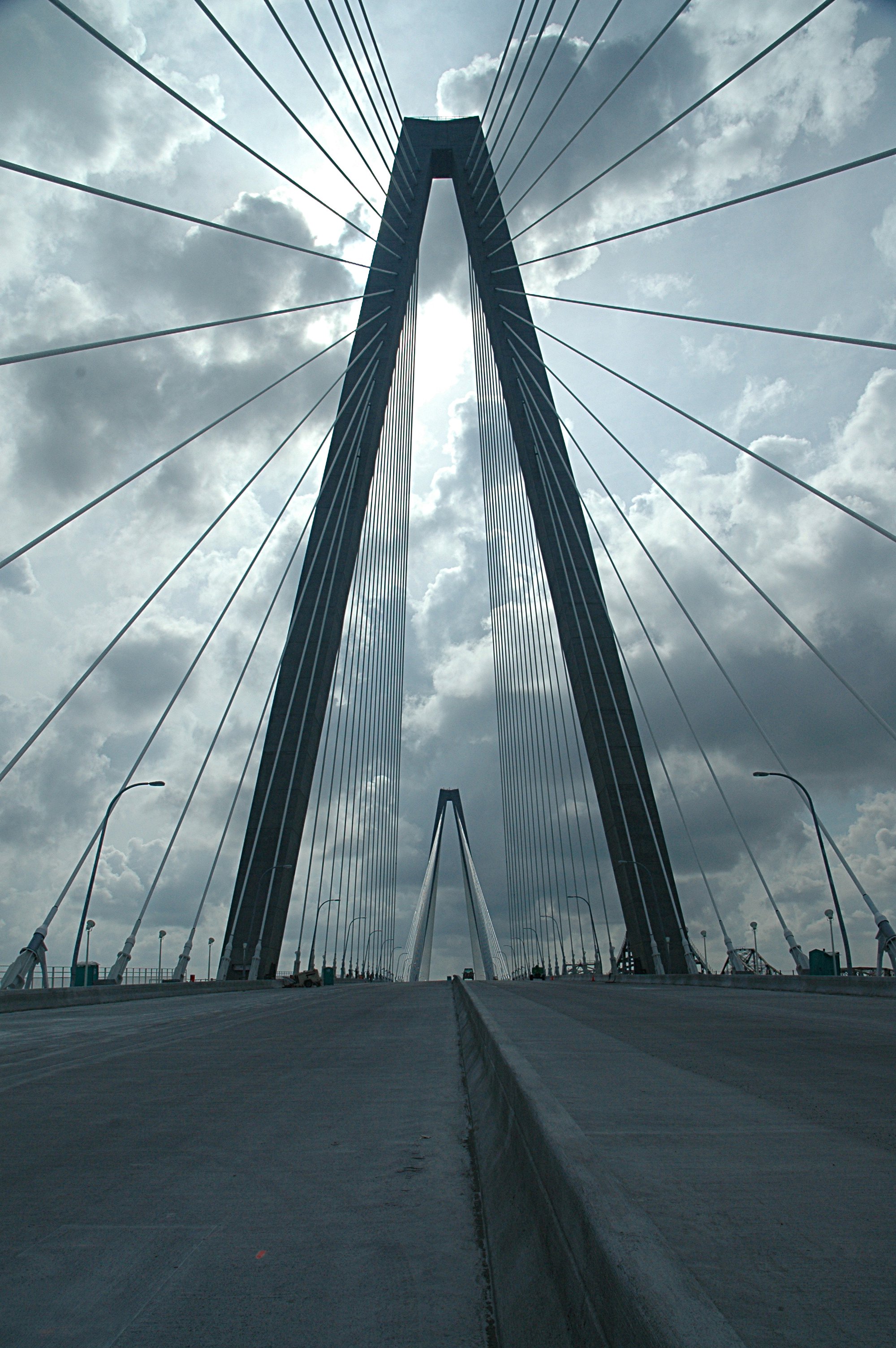

Looking east and looking west into an approaching storm

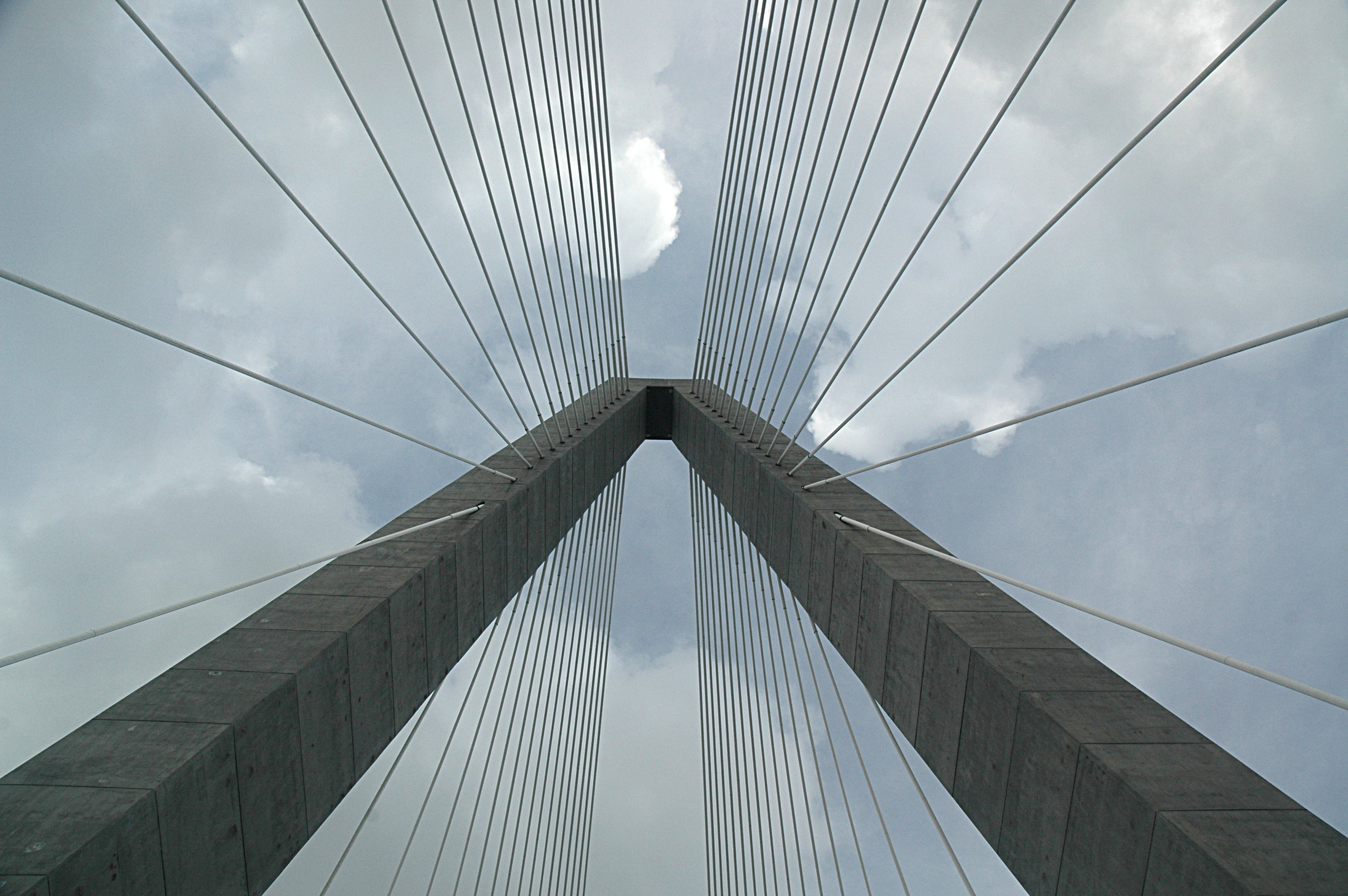

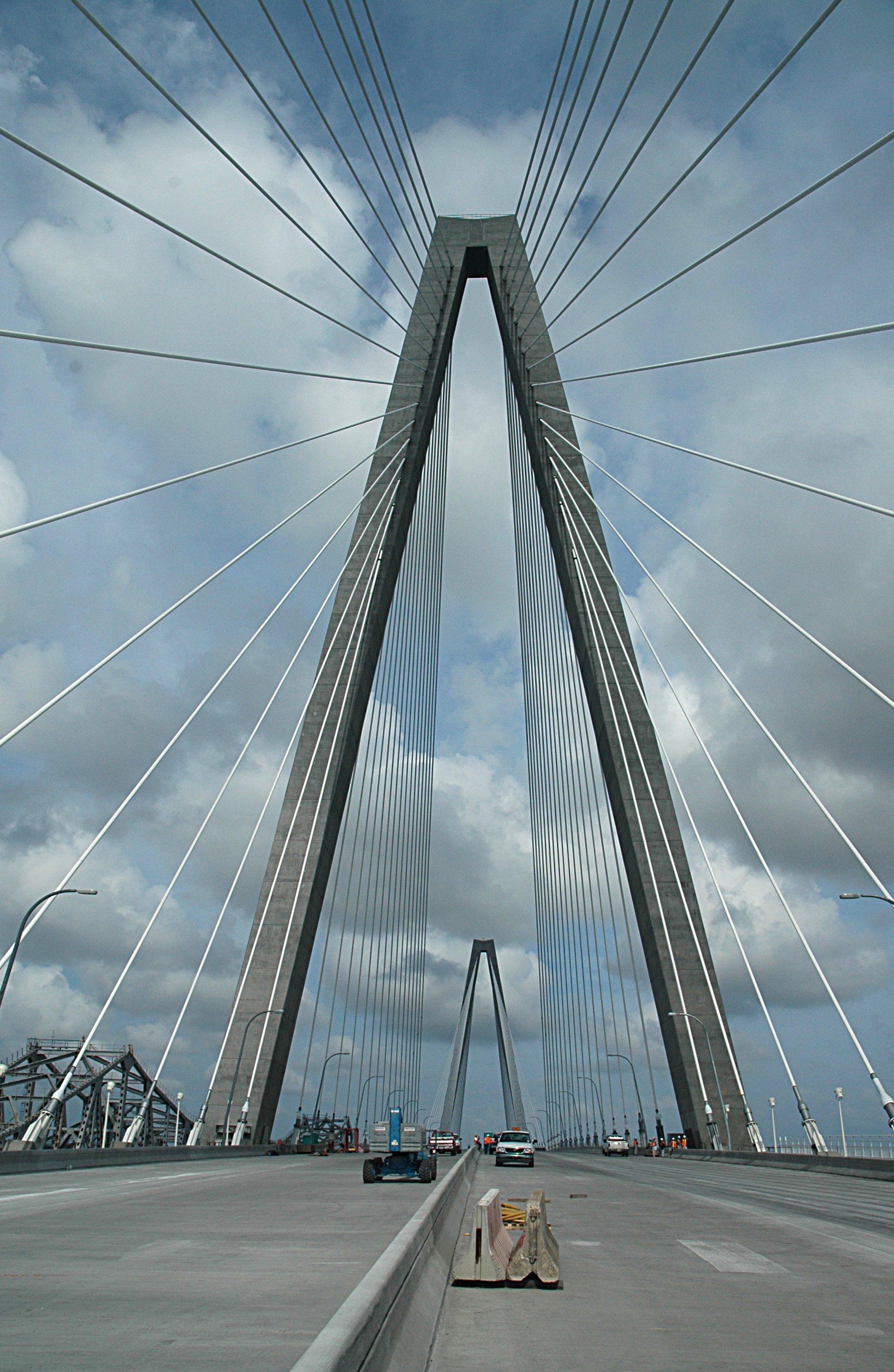

The elegance of symmetry

and asymmetry

Stay pipe shadows

A digital sketch of stay pipe shadows

Without words

Finishing touches

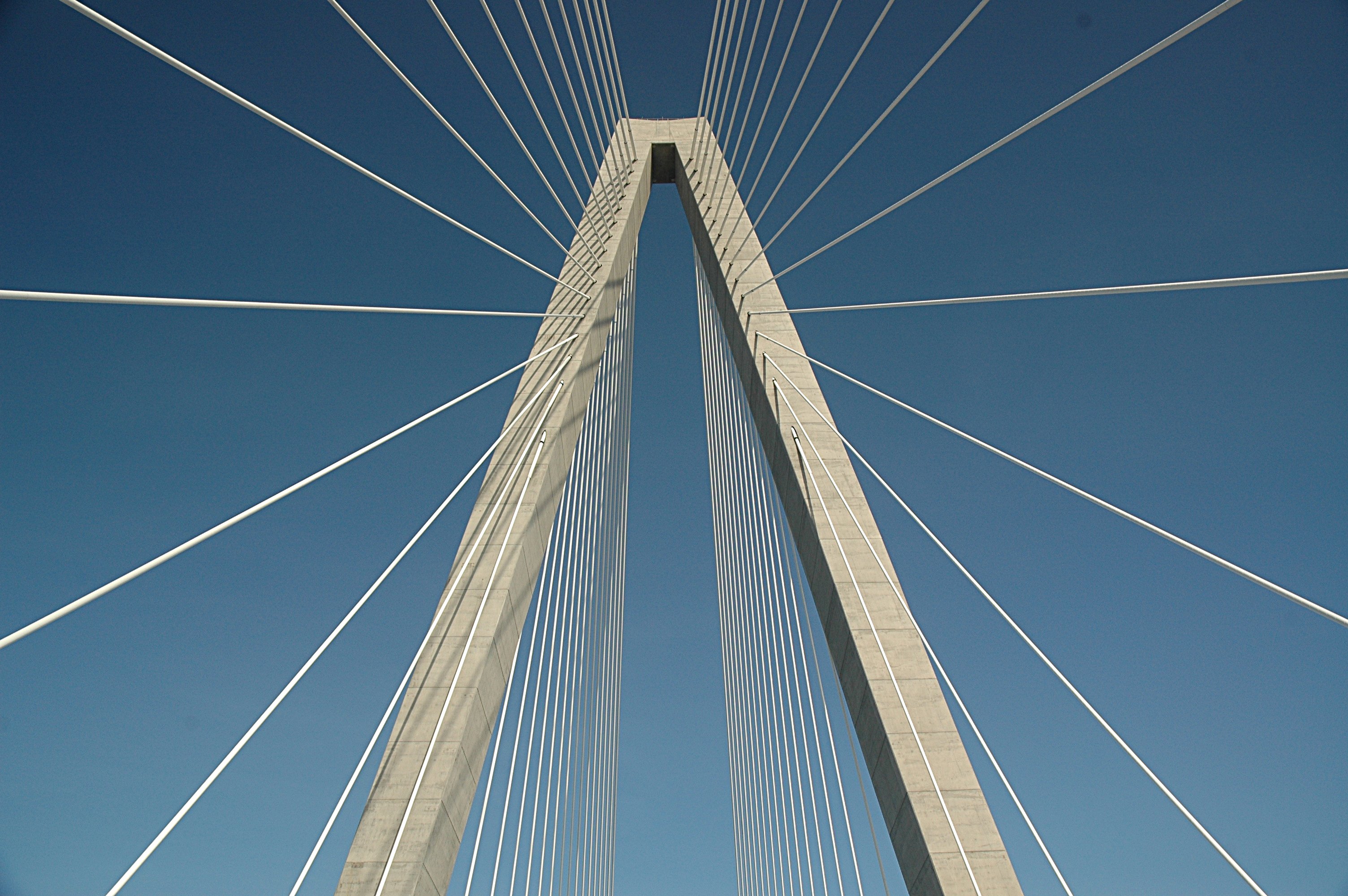

An array of stay cables

Supports

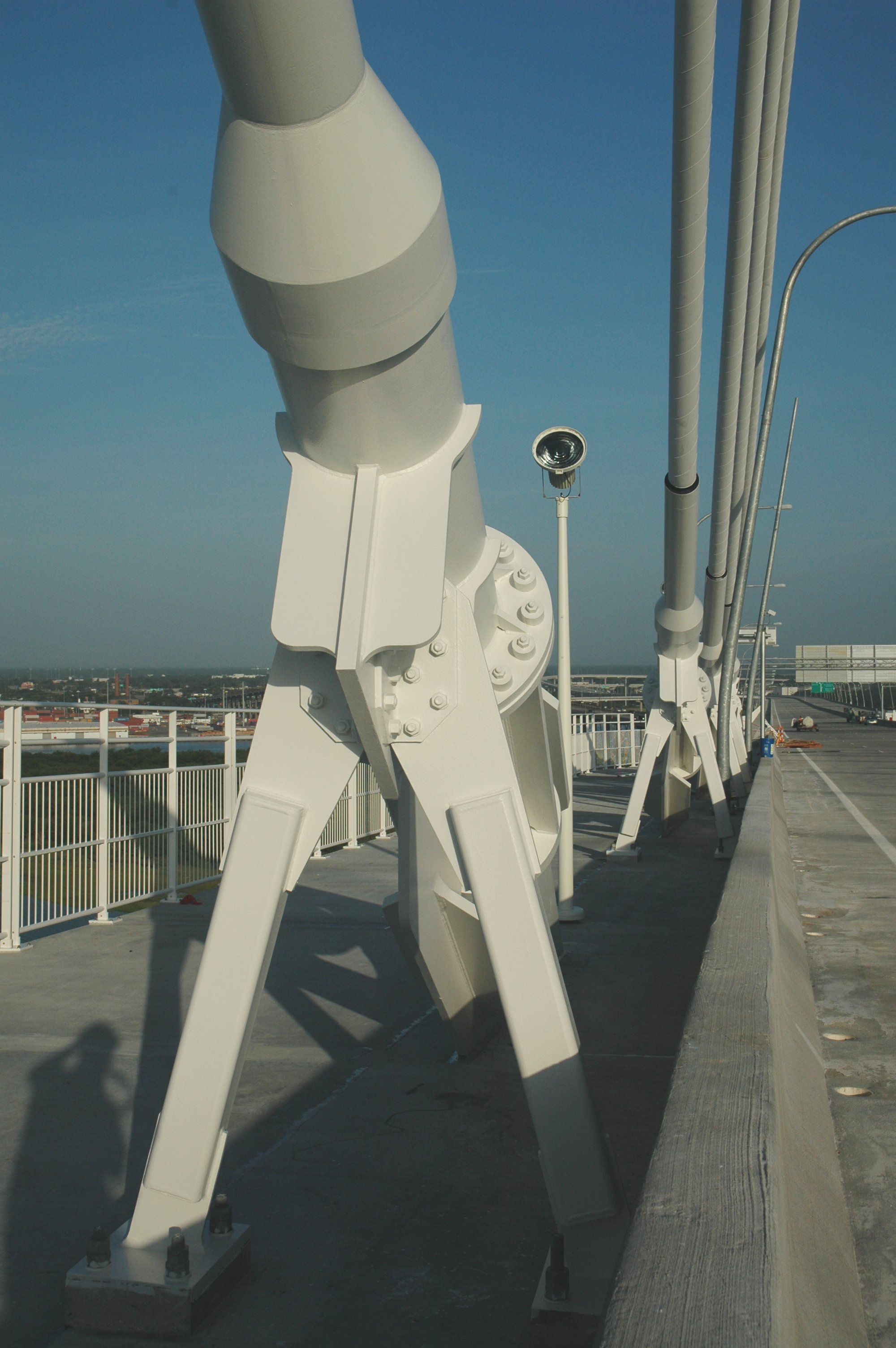

External Support Bases

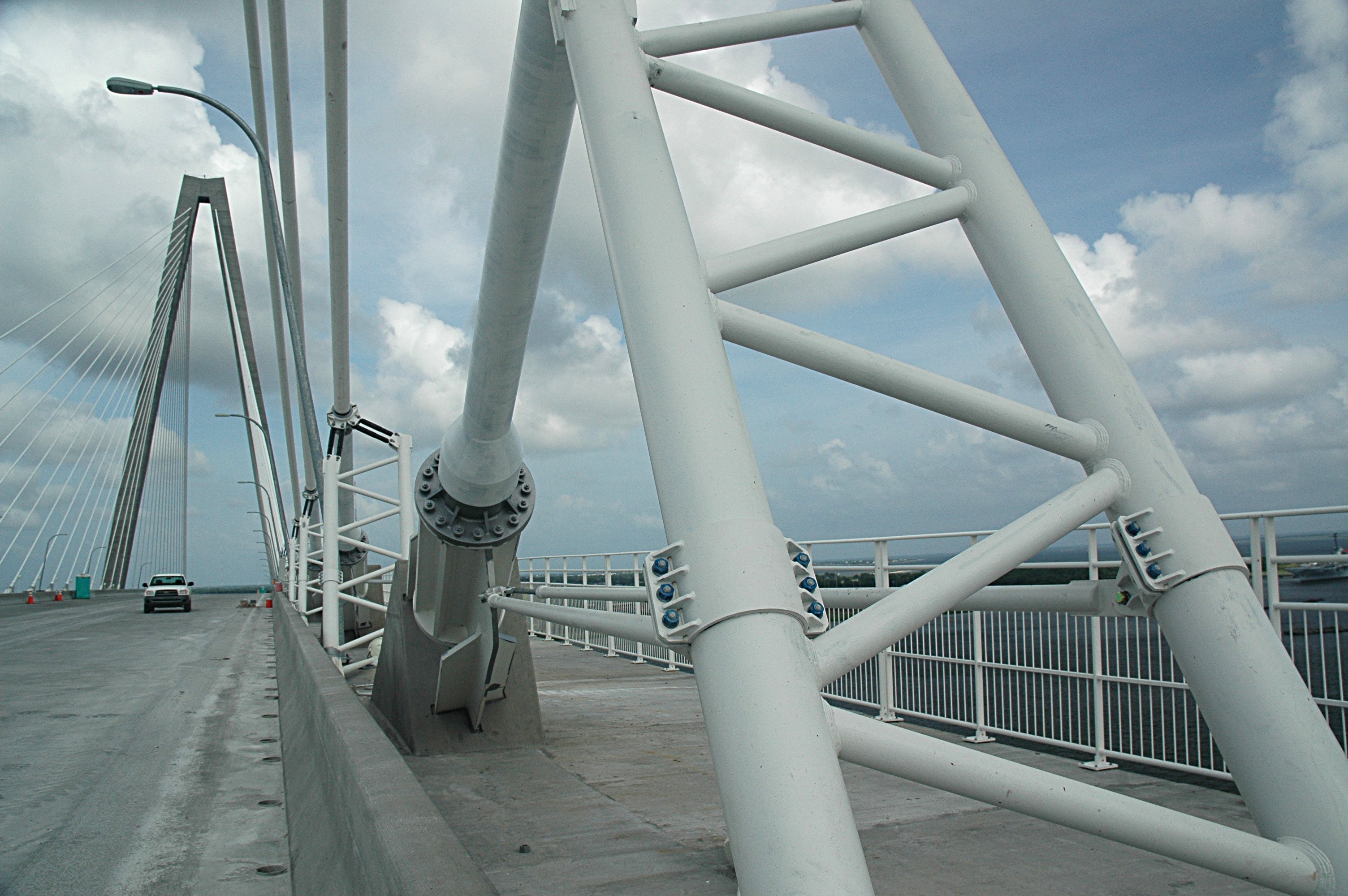

External Dampers

Lateral supports between the external damper frame and the shark fin

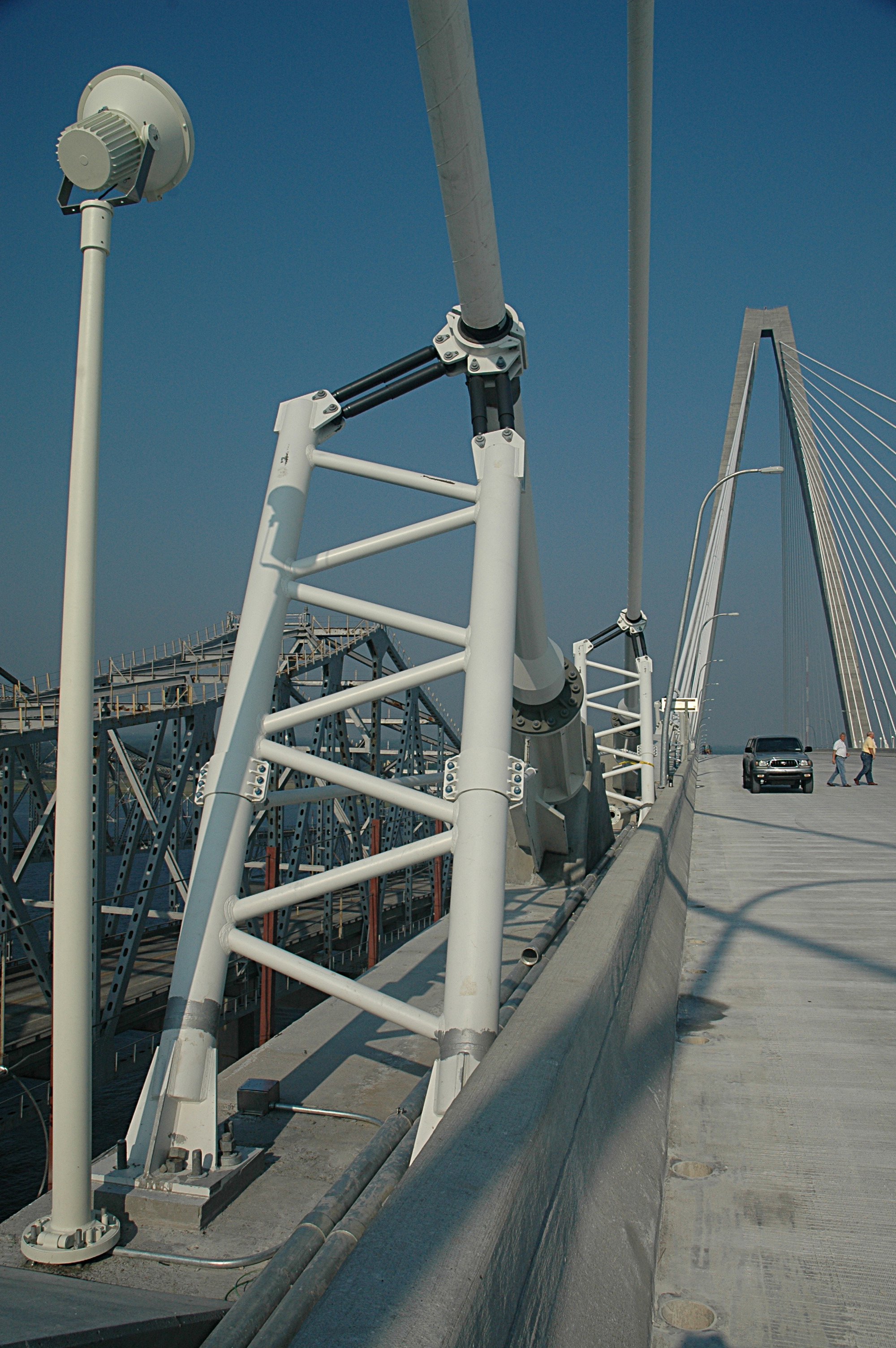

External damper base

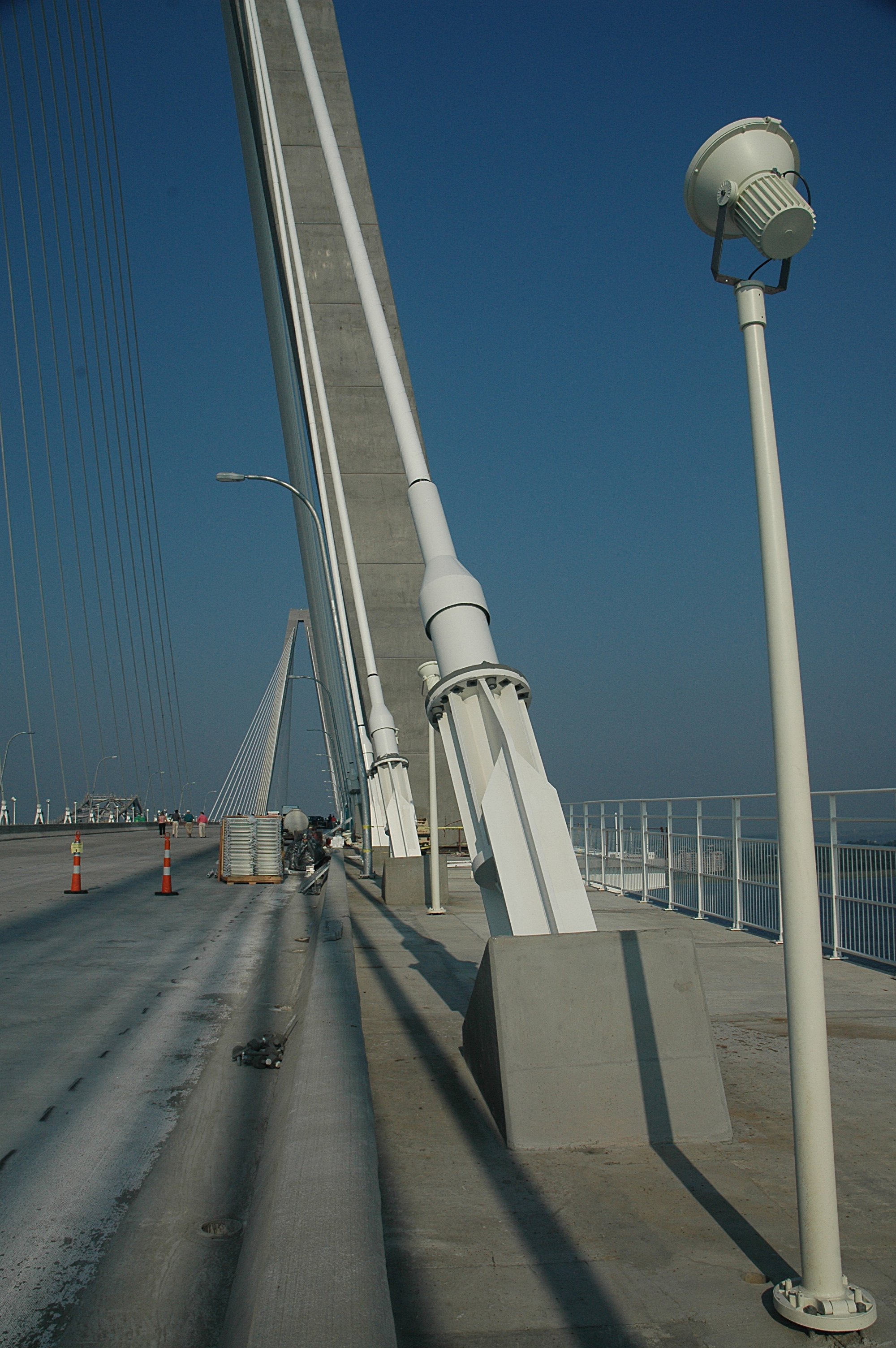

Bases for the shorter cable anchors

A view of our new bridge and approaches that we can smile about.
