March 29, 2005 East Pylon: Final steps in preparing anchors

Art hides everywhere - here are two stay pipe entrances as seen from inside the pylon

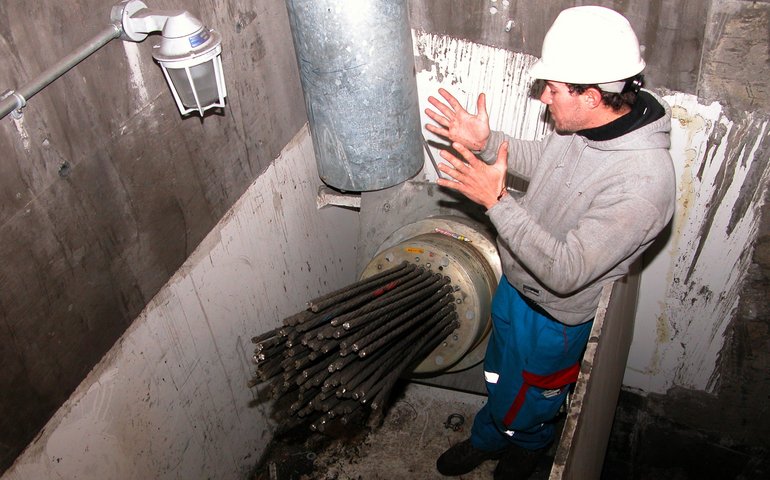

The cables are all cut to a standard length as shown by Cyril, my professor of stay-cable theory

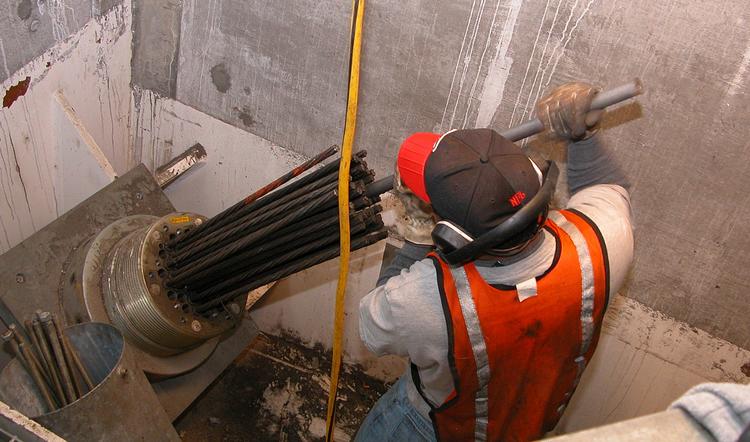

Then the wedges are permanently seated with another special Freyssinet tool

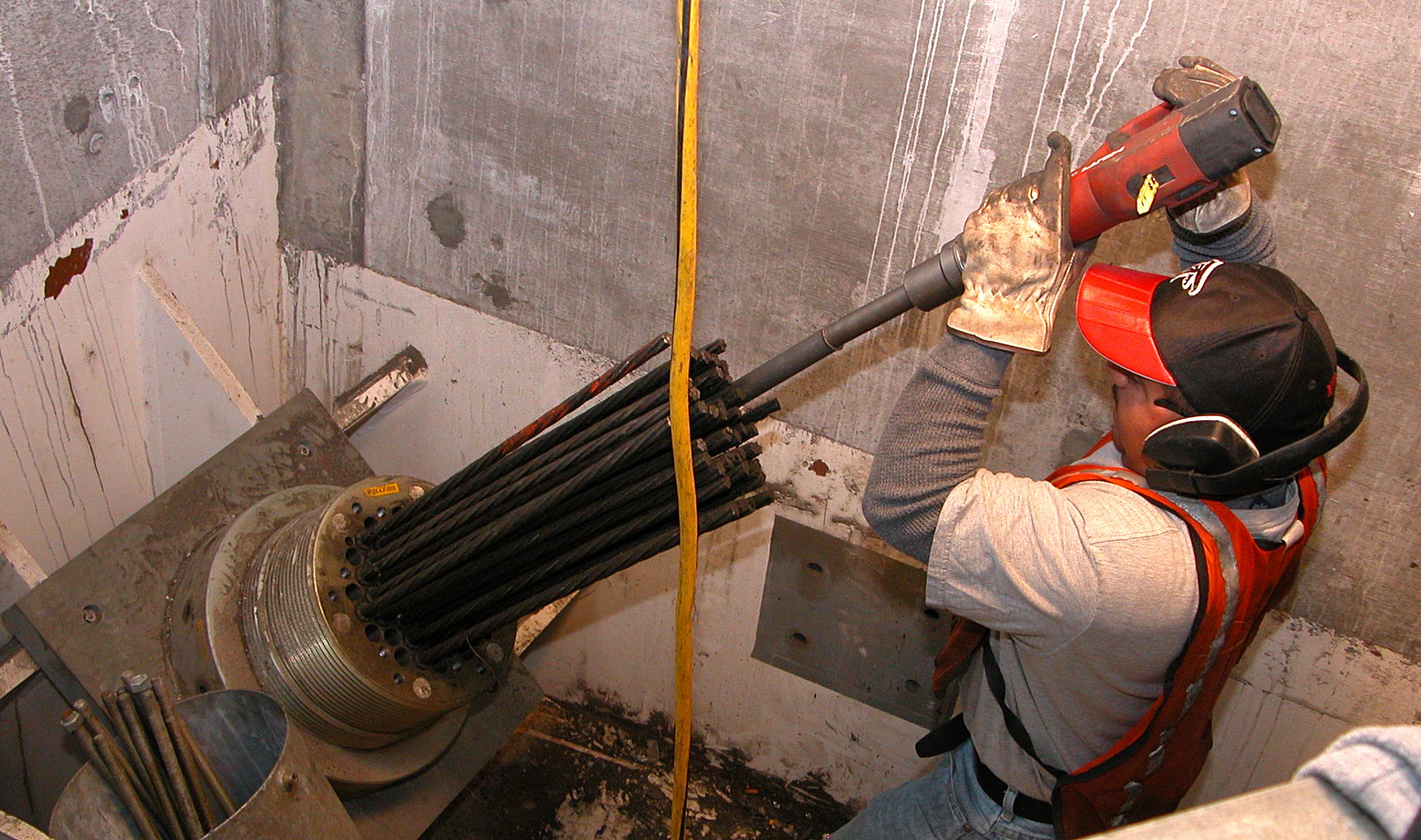

and a gun used to permanently seat the wedge

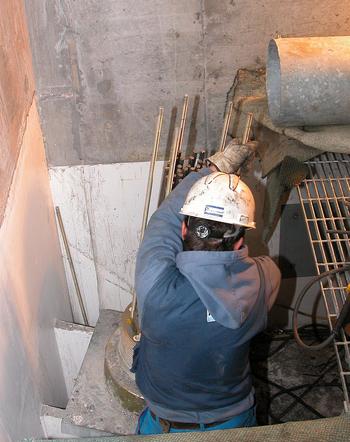

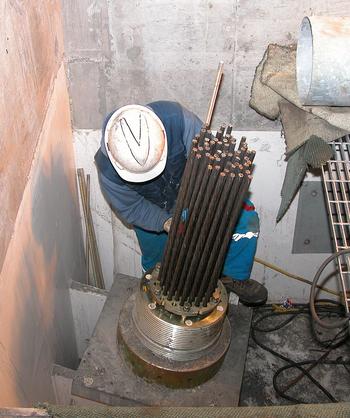

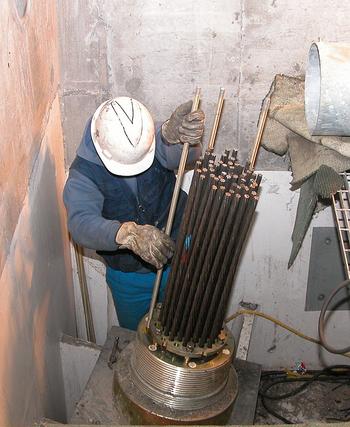

Then long bolts are inserted to hold the cable array cover

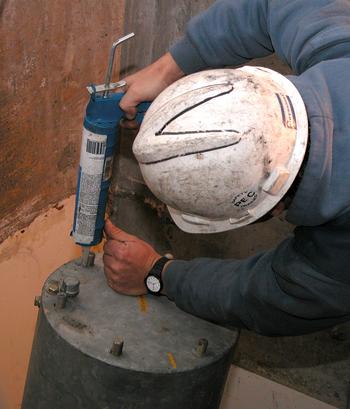

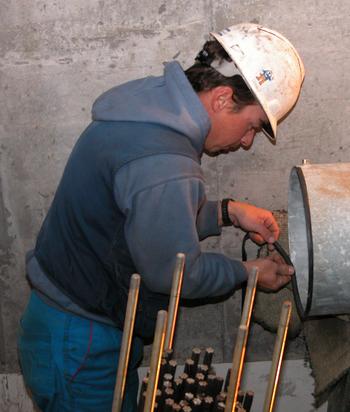

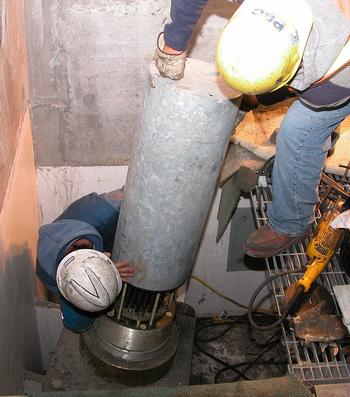

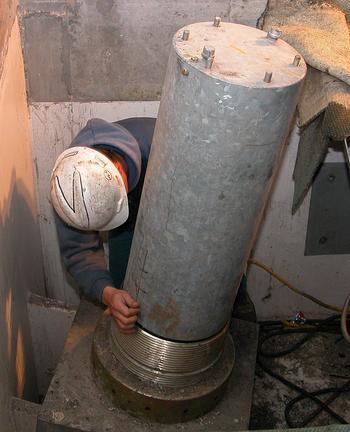

Preparing the gasket and cover
